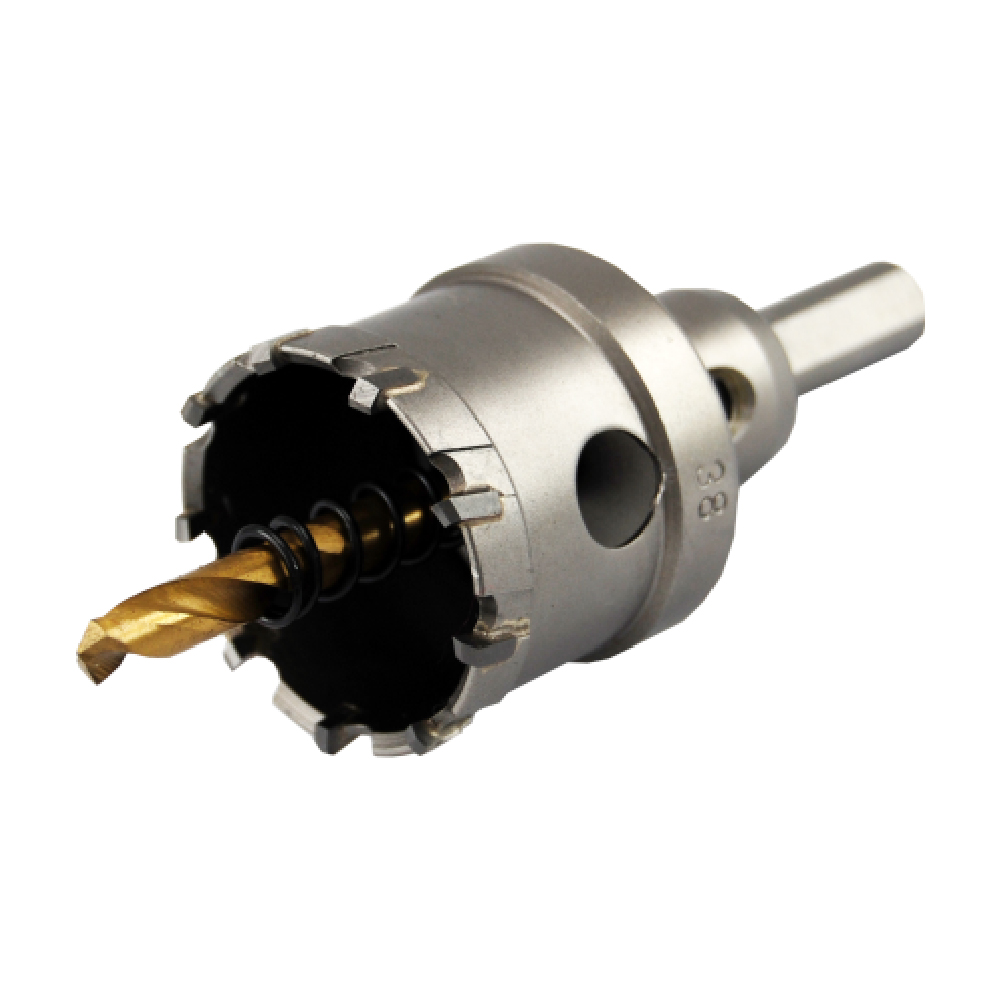

912
OEM, 3WIN, HTT
Ideal for drilling in alloyed, unalloyed steel, stainless sheet steel.
Precision for outstanding hole dimensional accuracy.
Max. Cutting thickness up to 8mm in metal, inox and stainless steel.
| Item Number | Diameter (mm) | Diameter (inch) | Shank Type and Size (mm) | Item Number | Diameter (mm) | Diameter (inch) | Shank Type and Size (mm) | |
| 912.0130006 | 13 | 1/2" | HEX 9.5 | 912.0650006 | 65 | 2-9/16" | HEX 12.3 | |
| 912.0140006 | 14 | 9/16" | HEX 9.5 | 912.0670006 | 67 | 2-5/8" | HEX 12.3 | |
| 912.0150006 | 15 | 19/32" | HEX 9.5 | 912.0680006 | 68 | 2-11/16" | HEX 12.3 | |
| 912.0160006 | 16 | 5/8" | HEX 9.5 | 912.0700006 | 70 | 2-3/4" | HEX 12.3 | |
| 912.0170006 | 17 | 11/16" | HEX 9.5 | 912.0710006 | 71 | 2-25/32" | HEX 12.3 | |
| 912.0180006 | 18 | 23/32" | HEX 9.5 | 912.0720006 | 72 | 2-27/32" | HEX 12.3 | |
| 912.0190006 | 19 | 3/4" | HEX 9.5 | 912.0730006 | 73 | 2-7/8" | HEX 12.3 | |
| 912.0200006 | 20 | 25/32" | HEX 9.5 | 912.0740006 | 74 | 2-29/32" | HEX 12.3 | |
| 912.0210006 | 21 | 13/16" | HEX 9.5 | 912.0750006 | 75 | 2-15/16" | HEX 12.3 | |
| 912.0220006 | 22 | 7/8" | HEX 9.5 | 912.0760006 | 76 | 3" | HEX 12.3 | |
| 912.0230006 | 23 | 29/32" | HEX 9.5 | 912.0780006 | 78 | 3-5/64" | HEX 12.3 | |
| 912.0240006 | 24 | 15/16" | HEX 9.5 | 912.0790006 | 79 | 3-1/8" | HEX 12.3 | |
| 912.0250006 | 25 | 1" | HEX 9.5 | 912.0800006 | 80 | 3-5/32" | HEX 12.3 | |
| 912.0260006 | 26 | 1-1/32" | HEX 9.5 | 912.0810006 | 81 | 3-3/16" | HEX 12.3 | |
| 912.0270006 | 27 | 1-1/16" | HEX 9.5 | 912.0820006 | 82 | 3-15/64" | HEX 12.3 | |
| 912.0280006 | 28 | 1-3/32" | HEX 9.5 | 912.0830006 | 83 | 3-1/4" | HEX 12.3 | |
| 912.0290006 | 29 | 1-1/8" | HEX 9.5 | 912.0850006 | 85 | 3-11/32" | HEX 12.3 | |
| 912.0300006 | 30 | 1-3/16" | HEX 9.5 | 912.0860006 | 86 | 3-3/8" | HEX 12.3 | |
| 912.0320006 | 32 | 1-1/4" | HEX 10.5 | 912.0890006 | 89 | 3-1/2" | HEX 12.3 | |
| 912.0330006 | 33 | 1-5/16" | HEX 10.5 | 912.0900006 | 90 | 3-17/32" | HEX 12.3 | |
| 912.0340006 | 34 | 1-11/32" | HEX 10.5 | 912.0910006 | 91 | 3-19/32" | HEX 12.3 | |
| 912.0350006 | 35 | 1-3/8" | HEX 10.5 | 912.0920006 | 92 | 3-5/8" | HEX 12.3 | |
| 912.0360006 | 36 | 1-27/64" | HEX 10.5 | 912.0930006 | 93 | 3-21/32" | HEX 12.3 | |
| 912.0370006 | 37 | 1-7/16" | HEX 10.5 | 912.0950006 | 95 | 3-3/4" | HEX 12.3 | |
| 912.0380006 | 38 | 1-1/2" | HEX 10.5 | 912.0960006 | 96 | 3-25/32" | HEX 12.3 | |
| 912.0390006 | 39 | 1-17/32" | HEX 10.5 | 912.0980006 | 98 | 3-7/8" | HEX 12.3 | |
| 912.0400006 | 40 | 1-9/16" | HEX 10.5 | 912.1000006 | 100 | 3-15/16" | HEX 12.3 | |
| 912.0410006 | 41 | 1-5/8" | HEX 10.5 | 912.1020006 | 102 | 4" | HEX 12.3 | |
| 912.0420006 | 42 | 1-21/32" | HEX 10.5 | 912.1040006 | 104 | 4-3/32" | HEX 12.3 | |
| 912.0430006 | 43 | 1-11/16" | HEX 10.5 | 912.1050006 | 105 | 4-1/8" | HEX 12.3 | |
| 912.0440006 | 44 | 1-3/4" | HEX 10.5 | 912.1080006 | 108 | 4-1/4" | HEX 12.3 | |
| 912.0450006 | 45 | 1-25/32" | HEX 10.5 | 912.1100006 | 110 | 4-21/64" | HEX 12.3 | |
| 912.0460006 | 46 | 1-13/16" | HEX 10.5 | 912.1110006 | 111 | 4-3/8" | HEX 12.3 | |
| 912.0480006 | 48 | 1-7/8" | HEX 10.5 | 912.1120006 | 112 | 4-13/32" | HEX 12.3 | |
| 912.0490006 | 49 | 1-15/16" | HEX 10.5 | 912.1140006 | 114 | 4-1/2" | HEX 12.3 | |
| 912.0500006 | 50 | 1-31/32" | HEX 10.5 | 912.1150006 | 115 | 4-17/32" | HEX 12.3 | |
| 912.0510006 | 51 | 2" | HEX 10.5 | 912.1160006 | 116 | 4-9/16" | HEX 12.3 | |
| 912.0520006 | 52 | 2-1/16" | HEX 10.5 | 912.1180006 | 118 | 4-21/32" | HEX 12.3 | |
| 912.0530006 | 53 | 2-3/32" | HEX 10.5 | 912.1210006 | 121 | 4-3/4" | HEX 12.3 | |
| 912.0540006 | 54 | 2-1/8" | HEX 10.5 | 912.1250006 | 125 | 4-29/32" | HEX 12.3 | |
| 912.0550006 | 55 | 2-11/64" | HEX 10.5 | 912.1260006 | 126 | 4-31/32" | HEX 12.3 | |
| 912.0560006 | 56 | 2-3/16" | HEX 10.5 | 912.1270006 | 127 | 5" | HEX 12.3 | |
| 912.0570006 | 57 | 2-1/4" | HEX 10.5 | 912.1280006 | 128 | 5-1/16" | HEX 12.3 | |
| 912.0580006 | 58 | 2-9/32" | HEX 10.5 | 912.1300006 | 130 | 5-1/8" | HEX 12.3 | |
| 912.0590006 | 59 | 2-5/16" | HEX 10.5 | 912.1330006 | 133 | 5-1/4" | HEX 12.3 | |
| 912.0600006 | 60 | 2-3/8" | HEX 10.5 | 912.1380006 | 138 | 5-7/16" | HEX 12.3 | |
| 912.0610006 | 61 | 2-13/32" | HEX 10.5 | 912.1400006 | 140 | 5-1/2" | HEX 12.3 | |
| 912.0620006 | 62 | 2-7/16" | HEX 10.5 | 912.1450006 | 145 | 5-23/32" | HEX 12.3 | |
| 912.0630006 | 63 | 2-31/64" | HEX 10.5 | 912.1460006 | 146 | 5-3/4" | HEX 12.3 | |
| 912.0640006 | 64 | 2-1/2" | HEX 10.5 | 912.1500006 | 150 | 5-29/32" | HEX 12.3 |
Ideal for drilling in alloyed, unalloyed steel, stainless sheet steel.
Precision for outstanding hole dimensional accuracy.
Max. Cutting thickness up to 8mm in metal, inox and stainless steel.
| Item Number | Diameter (mm) | Diameter (inch) | Shank Type and Size (mm) | Item Number | Diameter (mm) | Diameter (inch) | Shank Type and Size (mm) | |
| 912.0130006 | 13 | 1/2" | HEX 9.5 | 912.0650006 | 65 | 2-9/16" | HEX 12.3 | |
| 912.0140006 | 14 | 9/16" | HEX 9.5 | 912.0670006 | 67 | 2-5/8" | HEX 12.3 | |
| 912.0150006 | 15 | 19/32" | HEX 9.5 | 912.0680006 | 68 | 2-11/16" | HEX 12.3 | |
| 912.0160006 | 16 | 5/8" | HEX 9.5 | 912.0700006 | 70 | 2-3/4" | HEX 12.3 | |
| 912.0170006 | 17 | 11/16" | HEX 9.5 | 912.0710006 | 71 | 2-25/32" | HEX 12.3 | |
| 912.0180006 | 18 | 23/32" | HEX 9.5 | 912.0720006 | 72 | 2-27/32" | HEX 12.3 | |
| 912.0190006 | 19 | 3/4" | HEX 9.5 | 912.0730006 | 73 | 2-7/8" | HEX 12.3 | |
| 912.0200006 | 20 | 25/32" | HEX 9.5 | 912.0740006 | 74 | 2-29/32" | HEX 12.3 | |
| 912.0210006 | 21 | 13/16" | HEX 9.5 | 912.0750006 | 75 | 2-15/16" | HEX 12.3 | |
| 912.0220006 | 22 | 7/8" | HEX 9.5 | 912.0760006 | 76 | 3" | HEX 12.3 | |
| 912.0230006 | 23 | 29/32" | HEX 9.5 | 912.0780006 | 78 | 3-5/64" | HEX 12.3 | |
| 912.0240006 | 24 | 15/16" | HEX 9.5 | 912.0790006 | 79 | 3-1/8" | HEX 12.3 | |
| 912.0250006 | 25 | 1" | HEX 9.5 | 912.0800006 | 80 | 3-5/32" | HEX 12.3 | |
| 912.0260006 | 26 | 1-1/32" | HEX 9.5 | 912.0810006 | 81 | 3-3/16" | HEX 12.3 | |
| 912.0270006 | 27 | 1-1/16" | HEX 9.5 | 912.0820006 | 82 | 3-15/64" | HEX 12.3 | |
| 912.0280006 | 28 | 1-3/32" | HEX 9.5 | 912.0830006 | 83 | 3-1/4" | HEX 12.3 | |
| 912.0290006 | 29 | 1-1/8" | HEX 9.5 | 912.0850006 | 85 | 3-11/32" | HEX 12.3 | |
| 912.0300006 | 30 | 1-3/16" | HEX 9.5 | 912.0860006 | 86 | 3-3/8" | HEX 12.3 | |
| 912.0320006 | 32 | 1-1/4" | HEX 10.5 | 912.0890006 | 89 | 3-1/2" | HEX 12.3 | |
| 912.0330006 | 33 | 1-5/16" | HEX 10.5 | 912.0900006 | 90 | 3-17/32" | HEX 12.3 | |
| 912.0340006 | 34 | 1-11/32" | HEX 10.5 | 912.0910006 | 91 | 3-19/32" | HEX 12.3 | |
| 912.0350006 | 35 | 1-3/8" | HEX 10.5 | 912.0920006 | 92 | 3-5/8" | HEX 12.3 | |
| 912.0360006 | 36 | 1-27/64" | HEX 10.5 | 912.0930006 | 93 | 3-21/32" | HEX 12.3 | |
| 912.0370006 | 37 | 1-7/16" | HEX 10.5 | 912.0950006 | 95 | 3-3/4" | HEX 12.3 | |
| 912.0380006 | 38 | 1-1/2" | HEX 10.5 | 912.0960006 | 96 | 3-25/32" | HEX 12.3 | |
| 912.0390006 | 39 | 1-17/32" | HEX 10.5 | 912.0980006 | 98 | 3-7/8" | HEX 12.3 | |
| 912.0400006 | 40 | 1-9/16" | HEX 10.5 | 912.1000006 | 100 | 3-15/16" | HEX 12.3 | |
| 912.0410006 | 41 | 1-5/8" | HEX 10.5 | 912.1020006 | 102 | 4" | HEX 12.3 | |
| 912.0420006 | 42 | 1-21/32" | HEX 10.5 | 912.1040006 | 104 | 4-3/32" | HEX 12.3 | |
| 912.0430006 | 43 | 1-11/16" | HEX 10.5 | 912.1050006 | 105 | 4-1/8" | HEX 12.3 | |
| 912.0440006 | 44 | 1-3/4" | HEX 10.5 | 912.1080006 | 108 | 4-1/4" | HEX 12.3 | |
| 912.0450006 | 45 | 1-25/32" | HEX 10.5 | 912.1100006 | 110 | 4-21/64" | HEX 12.3 | |
| 912.0460006 | 46 | 1-13/16" | HEX 10.5 | 912.1110006 | 111 | 4-3/8" | HEX 12.3 | |
| 912.0480006 | 48 | 1-7/8" | HEX 10.5 | 912.1120006 | 112 | 4-13/32" | HEX 12.3 | |
| 912.0490006 | 49 | 1-15/16" | HEX 10.5 | 912.1140006 | 114 | 4-1/2" | HEX 12.3 | |
| 912.0500006 | 50 | 1-31/32" | HEX 10.5 | 912.1150006 | 115 | 4-17/32" | HEX 12.3 | |
| 912.0510006 | 51 | 2" | HEX 10.5 | 912.1160006 | 116 | 4-9/16" | HEX 12.3 | |
| 912.0520006 | 52 | 2-1/16" | HEX 10.5 | 912.1180006 | 118 | 4-21/32" | HEX 12.3 | |
| 912.0530006 | 53 | 2-3/32" | HEX 10.5 | 912.1210006 | 121 | 4-3/4" | HEX 12.3 | |
| 912.0540006 | 54 | 2-1/8" | HEX 10.5 | 912.1250006 | 125 | 4-29/32" | HEX 12.3 | |
| 912.0550006 | 55 | 2-11/64" | HEX 10.5 | 912.1260006 | 126 | 4-31/32" | HEX 12.3 | |
| 912.0560006 | 56 | 2-3/16" | HEX 10.5 | 912.1270006 | 127 | 5" | HEX 12.3 | |
| 912.0570006 | 57 | 2-1/4" | HEX 10.5 | 912.1280006 | 128 | 5-1/16" | HEX 12.3 | |
| 912.0580006 | 58 | 2-9/32" | HEX 10.5 | 912.1300006 | 130 | 5-1/8" | HEX 12.3 | |
| 912.0590006 | 59 | 2-5/16" | HEX 10.5 | 912.1330006 | 133 | 5-1/4" | HEX 12.3 | |
| 912.0600006 | 60 | 2-3/8" | HEX 10.5 | 912.1380006 | 138 | 5-7/16" | HEX 12.3 | |
| 912.0610006 | 61 | 2-13/32" | HEX 10.5 | 912.1400006 | 140 | 5-1/2" | HEX 12.3 | |
| 912.0620006 | 62 | 2-7/16" | HEX 10.5 | 912.1450006 | 145 | 5-23/32" | HEX 12.3 | |
| 912.0630006 | 63 | 2-31/64" | HEX 10.5 | 912.1460006 | 146 | 5-3/4" | HEX 12.3 | |
| 912.0640006 | 64 | 2-1/2" | HEX 10.5 | 912.1500006 | 150 | 5-29/32" | HEX 12.3 |
